WHAT IS IT?

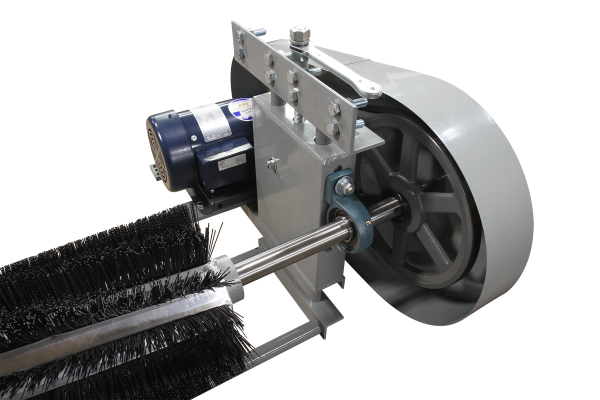

The Model 99 is a motorized brush-style conveyor belt cleaner for use in heavy-duty quarry and mining applications to reduce the carryback of material. The Model BR will work in wet or dry applications, as well as on a variety of organic materials and metal fines. The powered brush turns in the opposite direction of the belt in order to throw the dislodged material back into the discharge stream.
WHY IS IT NECESSARY?
The Model 99 is a good choice for use as a stand alone belt cleaner, and makes an excellent secondary belt cleaner when used behind one of our bladed primary cleaners in the more aggressive applications.
Technical Specifications

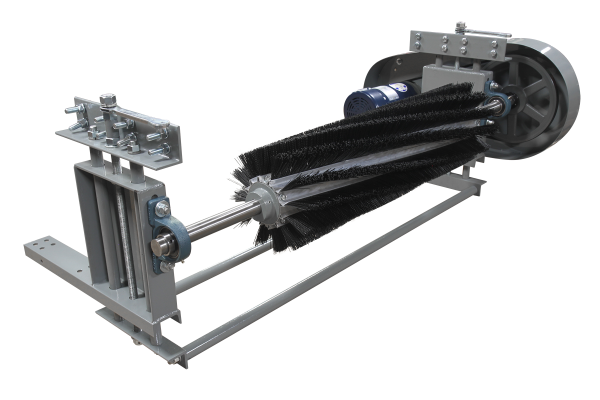

- The Model 99 includes the brush, framework, mounting, tensioning adjustments, and drive mechanism.
- The bristle strip material is either nylon, polypropylene, or oil-tempered wire. Other special materials available upon request.
- Nylon and polypropylene bristles are available in 0.040, 0.028, or 0.014 bristle diameters. Pricing varies. Oil tempered wire is only available in 0.010 bristle diameter.
- The unit is mounted on the conveyor by 4 mounting brackets, 2 for pivoting, and 2 for tensioning.
- The standard motor is 230/460 VAC, 60 Hz, 3 phase, reversible, 1150 rpm, TEFC.
- Brush should be adjusted with a "feather-touch" against the belt to allow it to "flick" material into the discharge.
- The operating temperature range is -40ºF to 180ºF (-40ºC to 82ºC).
- Explosion-proof motors are available upon request.
- Brush widths of 72" or less will be supplied as a single brush. Brush widths of 73" to 108" will consist of two brushes (end to end).
Pricing
*Prices subject to change without notice.
BRUSH CLEANER
C99040Nxx, C99040Pxx
| For Belt Width (In.) | Net Weight (Lbs.) | Polypropylene Bristles | Nylon Bristles |
|---|---|---|---|
| 6 | 115 | CALL FOR PRICING | CALL FOR PRICING |
| 8 | 125 | CALL FOR PRICING | CALL FOR PRICING |
| 12 | 140 | CALL FOR PRICING | CALL FOR PRICING |
| 16 | 175 | CALL FOR PRICING | CALL FOR PRICING |
| 18 | 182 | CALL FOR PRICING | CALL FOR PRICING |
| 20 | 189 | CALL FOR PRICING | CALL FOR PRICING |
| 24 | 201 | CALL FOR PRICING | CALL FOR PRICING |
| 30 | 225 | CALL FOR PRICING | CALL FOR PRICING |
| 36 | 244 | CALL FOR PRICING | CALL FOR PRICING |
| 42 | 280 | CALL FOR PRICING | CALL FOR PRICING |
| 48 | 307 | CALL FOR PRICING | CALL FOR PRICING |
| 54 | 333 | CALL FOR PRICING | CALL FOR PRICING |
| 60 | 434 | CALL FOR PRICING | CALL FOR PRICING |
| 72 | 501 | CALL FOR PRICING | CALL FOR PRICING |
| 84 | 529 | CALL FOR PRICING | CALL FOR PRICING |
| 96 | 623 | CALL FOR PRICING | CALL FOR PRICING |
| 108 | 690 | CALL FOR PRICING | CALL FOR PRICING |
BRUSH ONLY
(Shipped assembled) Includes bored castings, precision extruded, corrosion resistant brush sections, socket head screws.
B99040Nxx, B99040Pxx
| For Belt Width (In.) | Net Weight (Lbs.) | Casting Bore Size | Polypropylene Bristles | Nylon Bristles |
|---|---|---|---|---|
| 6 | 14 | 1-7/16" | CALL FOR PRICING | CALL FOR PRICING |
| 8 | 15 | 1-7/16" | CALL FOR PRICING | CALL FOR PRICING |
| 12 | 17 | 1-7/16" | CALL FOR PRICING | CALL FOR PRICING |
| 16 | 19 | 1-7/16" | CALL FOR PRICING | CALL FOR PRICING |
| 18 | 20 | 1-7/16" | CALL FOR PRICING | CALL FOR PRICING |
| 20 | 21 | 1-7/16" | CALL FOR PRICING | CALL FOR PRICING |
| 24 | 23 | 1-7/16" | CALL FOR PRICING | CALL FOR PRICING |
| 30 | 26 | 1-7/16" | CALL FOR PRICING | CALL FOR PRICING |
| 36 | 29 | 1-7/16" | CALL FOR PRICING | CALL FOR PRICING |
| 42 | 35 | 1-7/16" | CALL FOR PRICING | CALL FOR PRICING |
| 48 | 38 | 1-15/16" | CALL FOR PRICING | CALL FOR PRICING |
| 54 | 41 | 1-15/16" | CALL FOR PRICING | CALL FOR PRICING |
| 60 | 44 | 1-15/16" | CALL FOR PRICING | CALL FOR PRICING |
| 72 | 50 | 1-15/16" | CALL FOR PRICING | CALL FOR PRICING |
| 84 | 54 | 1-15/16" | CALL FOR PRICING | CALL FOR PRICING |
| 96 | 66 | 1-15/16" | CALL FOR PRICING | CALL FOR PRICING |
| 108 | 73 | 1-15/16" | CALL FOR PRICING | CALL FOR PRICING |
REPLACEMENT BRUSH HOUSING
Includes: Precision extruded corrosion resistant brush sections, socket head screws.
H99040Nxx, H99040Pxx
| For Belt Width (In.) | Net Weight (Lbs.) | Polypropylene Bristles | Nylon Bristles |
|---|---|---|---|
| 6 | 8 | CALL FOR PRICING | CALL FOR PRICING |
| 8 | 9 | CALL FOR PRICING | CALL FOR PRICING |
| 12 | 11 | CALL FOR PRICING | CALL FOR PRICING |
| 16 | 13 | CALL FOR PRICING | CALL FOR PRICING |
| 18 | 14 | CALL FOR PRICING | CALL FOR PRICING |
| 20 | 15 | CALL FOR PRICING | CALL FOR PRICING |
| 24 | 17 | CALL FOR PRICING | CALL FOR PRICING |
| 30 | 20 | CALL FOR PRICING | CALL FOR PRICING |
| 36 | 23 | CALL FOR PRICING | CALL FOR PRICING |
| 42 | 28 | CALL FOR PRICING | CALL FOR PRICING |
| 48 | 31 | CALL FOR PRICING | CALL FOR PRICING |
| 54 | 33 | CALL FOR PRICING | CALL FOR PRICING |
| 60 | 35 | CALL FOR PRICING | CALL FOR PRICING |
| 72 | 41 | CALL FOR PRICING | CALL FOR PRICING |
| 84 | 43 | CALL FOR PRICING | CALL FOR PRICING |
| 96 | 53 | CALL FOR PRICING | CALL FOR PRICING |
| 108 | 60 | CALL FOR PRICING | CALL FOR PRICING |
