WHAT IS IT?

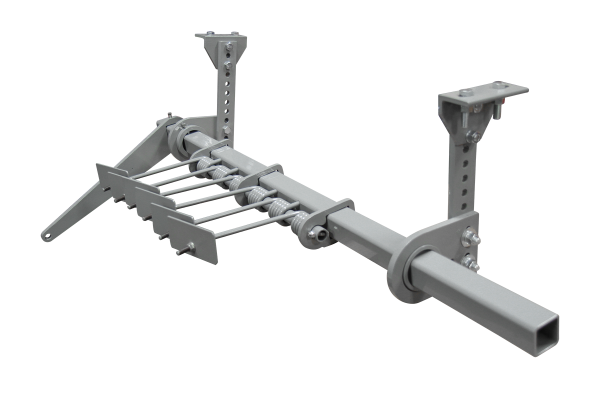

The Model 33 is a multi-bladed spring arm cleaner that provides the ability for each blade to work independently of each other in order to remove carryback from a conveyor belt and deposit it into the discharge stream. The conveyor belt cleaner is available in a wide variety of blade materials.
WHY IS IT NECESSARY?
The Model 33 is an inexpensive way to prevent material from clinging to the conveyor belt and building up on idlers and pulleys. The independent blade arrangement does not damage mechanical belt splices.
Technical Specifications
- Housing is polyester powder-coated carbon steel.
- Variety of blades to choose from, including standard heat-treated spring steel (H), urethane (U), stainless steel (S), nickel alloy coated (N), ceramic (C) with stainless steel holder, and tungsten carbide (T).
- The unit is mounted on the conveyor by drilling (4) 9/16" diameter holes.
- Single pressure handle adjustment provides blade tension against the conveyor belt. Individual spring arms provide additional tension.
- Spring arms come standard in carbon steel/mild steel, or special as stainless steel.
- Hanger rail mounting or flange mounting (for mounting in chutes) available. Specify at time of order.
- The operating temperature range is -40ºF to 150ºF (-40ºC to 66ºC).
Pricing
*Prices subject to change without notice.
| Conveyor Belt Width (In.) | No. of Blades | Shipping Weight (Lbs.) | Standard Steel (P<) | Stainless Steel (S) | Urethane (P) | Stainless Steel w/ Nickel Alloy (N) | Ceramic (C) | Tungsten Carbide (T) |
|---|---|---|---|---|---|---|---|---|
| 6 | 1 | 32 | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING |
| 12 | 3 | 41 | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING |
| 18 | 4 | 46 | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING |
| 20 | 5 | 52 | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING |
| 24 | 6 | 57 | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING |
| 30 | 8 | 69 | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING |
| 36 | 9 | 78 | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING |
| 42 | 11 | 85 | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING |
| 48 | 13 | 94 | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING |
| 54 | 14 | 101 | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING |
| 60 | 16 | 106 | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING |
| 72 | 20 | 126 | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING | CALL FOR PRICING |
NOTE: Belt cleaner (see above) and mountings (see below) are purchased separately.
MOUNTING TYPE
| Part Number | Description | Shipping Weight (Lbs.) | Price |
|---|---|---|---|
| 33-FA | Flange Mount, 42" and smaller | 6 lbs. | CALL FOR PRICING |
| 33-FB | Flange Mounts, 43" and wider | 6 lbs. | CALL FOR PRICING |
| 33-HA | Hanger Mounts, 42" and smaller | 18 lbs. | CALL FOR PRICING |
| 33-HB | Hanger Mounts, 43" and wider | 18 lbs. | CALL FOR PRICING |
NOTE: Belt cleaner (see up above) and mountings (see above) are ordered separately.
REPLACEMENT WIPER BLADES
| Part Number | Description | Shipping Weight (Lbs.) | Price |
|---|---|---|---|
| 210 | Standard Heat Treated Spring Steel (Painted) | 1 | CALL FOR PRICING |
| 220 | Urethane Wiper Blade | 1 | CALL FOR PRICING |
| 230 | Stainless Steel Wiper Blade | 1 | CALL FOR PRICING |
| 240 | Nickel Alloy Coated Stainless Steel Wiper Blade | 1 | CALL FOR PRICING |
| 250 | Ceramic Wiper Blade in Stainless Steel Holder | 1 | CALL FOR PRICING |
| 260 | Tungsten Carbide Wiper Blade | 1 | CALL FOR PRICING |
REPLACEMENT SPRING ARMS
| Part Number | Description | Shipping Weight (Lbs.) | Price |
|---|---|---|---|
| 660 | Standard Spring Arm | 1 | CALL FOR PRICING |
| 685S | Stainless Steel Spring Arm | 1 | CALL FOR PRICING |
